Ga-Rew Co., Ltd.

Sonic Cleaner

Brushing Cleaner : BC-10-2

Features of Brushing Cleaner

Wash oil and water stains with small amount of water

With double power of Brush vibration (6,000 times per minute) and Pulse Air, Brush Cleaner can wash difficult dirt, such as stains, yellowing, oil stains and fur. It has a built-in self-priming pump, and can be used for dry cleaning same as Brush Gun, and also can be used for semi-dry cleaning, water cleaning, draining and drying. It can operate continuously for one hour with small amount of water (10 liters per hour).

What is Pulse Air?

It can wash stubborn dirt on the corrugated surface or in the gap in a short time. Dirt moved to the brush or the cone can be removed in the semi-dry process. (self-cleaning) By using this brush, your work efficiency will be improved significantly.

Brushing Cleaner thumbnail
Brushing Cleaner
TypeBC-10-2
DimensionsW50 D300 H180 (mm)
Dry Weightapprox. 600 grams
Air Pressure0.5 to 0.8 MPa
Amount of Mist10 liters/hour
Fluid TypeNeutral
Operating Temperature10 to 50 °C (50 to 122 °F)
Brush MaterialNylon
Connection PartMale Coupler

Application Example

[6:44] Brushing Cleaner

View Other Movies

Wheel cleaning Car cleaning Case cleaning Wet Suit cleaning Evaporator cleaning
  • Motorcycles, Automobiles, Heavy Machinery
  • Pretreatment of the photocatalyst spray, Aluminum sash
  • Shutters, screen doors, carpet
  • Cleaning of parting agent, Grease and Adhesive
  • Kitchen apparatus such as Range Food
  • Tractor, tiller, barn
  • Office Automation apparatus, Toys (stuffed animals, dolls)
  • Leather goods, such as footwear
  • Leisure goods, such as marine sports equipment

Page Top

Sonic Spray Cleaner

Features of Sonic Spray Cleaner

Softer but more powerful than high-pressure washing

Do you have these experiences? "High pressure washing requires a lot of water (fluid), because it removes the dirt in the amount of water and water pressure.", "The cleaning area is narrow, so it takes a lot of time to wash wide area.", "The work is damaged by steam and pressure."

Sonic Spray Cleaner is a cleaning system with Pulse Air, can work only with the air of the compressor. By the effect of Pulse Air power, it can realize a strong cleaning capability. It can remove the dirt from the places difficult to clean up, such grooves, gaps, dents and oil stains. It can remove the dirt without scrubbing.

What is Pulse Air?

Details of One Touch Nozzle Unit

Sonic Spray Cleaner
Sonic Spray Cleaner : Spec.
Model Name Sonic Spray Cleaner
Type PSG-FG
Dimensions W230 D230 H450 (mm)
Dry Weight approx. 7 kilograms
Air Pressure 0.4 to 0.7 MPa
Air Flow Rate 160 to 180 L/min
Capacity 10 liters
Operating Temperature 10 to 50 °C (50 to 122 °F)
Nozzle The nozzle is not included. Please choose Optional Nozzle Unit for your purpose.
Details of One Touch Nozzle Unit

Page Top

Cleaning Demo Movie

Demonstration movie of cleaning with the Blaster Nozzle equivalent. Please check the quantity of waste water.

[0:40] Cleaning of Dirt (Ultrasonic Binary Fluid Cleaner)

View Other Movies

Page Top

Application Example (Cleaning)

The whole Air Conditioner
Evaporator cleaning, application of antimicrobial
Filter and decorative panel cleaning
Automotives, Motorcycles, Heavy Machinery, Construction Machinery
Removal of Greases and Oil stains on the Engine and engine compartment
Dissolving and removing of dirt or water on vehicle body
Cleaning of the dirt and carbons on Tires and Wheels
Livestock, Agriculture
Cleaning of dressed carcass, piggery, henhouse
Cleaning of Tractor, Tiller
Supermarkets, hotels, food factories
Cleaning of food and bacteria on the apparatus, such as showcase, refrigerator and floor
Application of antimicrobial agents
Cleaning of oil stains on the range hoods, exhaust fans, wall, floor
Removal of proteins on food processing machines (oil, bacteria, gelatin and blood)

Page Top

Supersonic Tornado SPT-10T

Features of Supersonic Tornado SPT-10T

Generate Ultrasonic Wave in the Atmosphere! Remove the Water Scale Easily

Using our specially developed two-step mixing technology, the high speed rotating nozzle generates ultrasonic wave. High speed rotating Pulse Air (5,000 times / min) apples the powerful air blow and it is realized a high-level cleaning capability. It can remove the water scale with a combination power of ultrasonic and Pulse Air without scrubbing.

Water Consumption is 1/100 of a High Pressure Washer

At 0.8MPa of the air and water pressure, the water consumption is 50mL/min. Compared with the general high pressure washer (5,000mL/min at 30MPa), it is 1/100. The detergent does not required, you can wash only water.

What is Pulse Air?

What is the difference with general high pressure washer?

Movies New

Ultrasonic Binary Fluid Cleaner
Supersonic Tornado : Spec.
TypeSPT-10T
DimensionsW400 D400 H420 (mm)
Dry Weightapprox. 10 kilograms
Air Pressure0.5 to 1.2 MPa
Air Flow Rate500 to 700 liters/min
Amount of Mist50 to 500 mL/min
Fluid TypeAir, Pure Water, Neutral Detergent
Capacity10 liters
Operating Temperature10 to 50 °C (50 to 122 °F)
Nozzle The nozzle is not included. Please choose Optional Nozzle Unit for your purpose.
Details of One Touch Nozzle Unit

Page Top

Supersonic Tornado SPT-10P-3B

Features of Supersonic Tornado SPT-10P-3B

The Supersonic Tornado performs the cleaning in air, so you do not need to prepare the water treatment facilities. Because the water consumption is 1/50 to 1/100 as compared to high pressure washing, there is less influence of water in an electric system. It can wash the large object like a vehicle. Also can remove the water scale it is difficult to remove by general high pressure washer. After cleaning, switch off the fluid, you can perform the draining with Pulse Air in a short time.

You can switch three types of chemicals, water and air with the valve. It can be used for chemical cleaning, rinse and drying with one machine.

What is Pulse Air?

What is the difference with general high pressure washer?

SPT-10P-3B thumbnail
SPT-10P-3B : Spec.
DimensionsW600 D400 H540 (mm)
Weightapprox. 10 kilograms
Air Pressure0.5 to 0.9 MPa
Air Flow Rate120 to 400 liters/min
Amount of Mist0 to 200 mL/min
Fluid TypeAir, Pure Water, Neutral Detergent
Tank CapacityChemicals 1 liter, Water 10 liters
Operating Temperature10 to 50 °C (50 to 122 °F)
Power SupplyAC100V 50W
Nozzle The nozzle is not included. Please choose Optional Nozzle Unit for your purpose.
Details of One Touch Nozzle Unit

Application Example (Cleaning)

  • Used printer head, Chassis
  • OA equipment such as copiers
  • Shoes and bags

Page Top

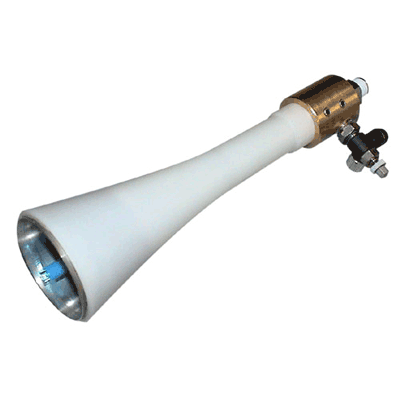

Ultrasonic Binary Fluid Nozzle

The minimum order number is ten, because this is order made product for manufacturer.

Features of Ultrasonic Binary Fluid Nozzle

Generate Ultrasonic Wave in the Atmosphere! Remove the Water Scale Easily

Using our specially developed two-step mixing technology, the high speed rotating nozzle generates ultrasonic wave. High speed rotating Pulse Air (5,000 times / min) apples the powerful air blow and it is realized a high-level cleaning capability. It can remove the water scale with a combination power of ultrasonic and Pulse Air without scrubbing.

Water Consumption is 1/100 of a High Pressure Washer

At 0.8MPa of the air and water pressure, the water consumption is 50mL/min. Compared with the general high pressure washer (5,000mL/min at 30MPa), it is 1/100. The detergent does not required, you can wash only water.

What is Pulse Air?

What is the difference with general high pressure washer?

Movies New

Ultrasonic Binary Fluid Nozzle
Ultrasonic Binary Fluid Nozzle : Spec.
TypeSPT-01U
DimensionsW70 D50 H230 (mm)
Dry Weightapprox. 250 grams
Air/Water
Pressure
0.8 to 1.2 MPa
Air Flow Rate500 to 700 liters/min
Water Flow Rate50 to 500 mL/min
